In large-scale building projects, the Heating, Ventilation, and Air Conditioning (HVAC) system functions as the “respiratory system” of a building. Its selection directly impacts long-term energy performance, indoor environmental quality, operational costs, and sustainability. A scientific and forward-looking decision-making process requires the integration of professional expertise, economic analysis, and environmental responsibility. Based on real-world data and case studies, this article explores the core considerations and system solutions for HVAC selection in large buildings.
Core Considerations: Multidimensional Decision-Making Foundations
- Building Characteristics and Functional Requirements (Core Starting Point)
Building Type and Use:
Offices, hospitals, hotels, shopping malls, data centers, transportation hubs, and industrial plants each have unique requirements. For example:
Hospitals: Operating rooms and ICUs require strict temperature and humidity control (e.g., 22–26°C, 40–60% RH), high air cleanliness (ISO Class 5 or higher), 24/7 reliability, and independent zoning. General wards require comfort, while infection wards need negative pressure control.
Data Centers: High year-round cooling demand (cooling load density ≥1 kW/m²), requiring extreme reliability, redundancy, and optimization of Power Usage Effectiveness (PUE).
Shopping Malls: High and variable occupant density (peak holidays), multiple internal heat sources (lighting, equipment, occupants), strong fresh air handling capability, and load flexibility. Dining areas require independent exhaust systems.
Building Scale and Layout:
Floor area, ceiling height, core tube location, and functional zoning (core, podium, tower) directly affect load distribution, duct/piping routes, and equipment room size.
Envelope Performance:
Wall insulation, window type (Low-E double-glazed), shading coefficient, and air tightness are critical to baseline loads. High-performance envelopes can reduce peak loads by 20–40% and annual energy consumption.
Internal Load Characteristics:
Occupant density, lighting power density, and equipment heat gains (IT, kitchen, industrial) are primary internal heat sources, especially during unoccupied hours.
Special Process Requirements:
Precision HVAC for labs (constant temp/humidity), museums (artifact preservation), and cleanrooms (electronic manufacturing).
- Load Calculation and Analysis (Precision Design Basis)
Dynamic Simulation is Key:
Use professional energy modeling software (e.g., EnergyPlus, DesignBuilder, TRNSYS, DeST) for 8,760-hour annual load calculations, incorporating local weather data (TMY), thermal inertia, internal load schedules, infiltration, and solar gain.
Application of Results:
Accurate peak/part-load calculations and annual load profiles inform equipment sizing, selection, and operational optimization. Avoid oversized or undersized equipment.
- Energy Availability and Cost (Economy and Sustainability)
Local Energy Structure:
Grid stability, electricity pricing (peak/off-peak tariffs, demand charges), natural gas, district heating/cooling, and renewable energy (solar, geothermal, wind) accessibility and cost. Ice/water storage systems excel in regions with high peak-valley price differentials.
Operational Cost Analysis:
Conduct Life Cycle Cost Analysis (LCCA), weighing upfront costs, energy expenses (electricity, gas, water), maintenance, lifespan, and residual value. Operational costs typically exceed 70% of LCC.
Policy Incentives:
Subsidies, tax benefits, or mandates for high-efficiency equipment, renewables, and green certifications (LEED, BREEAM, China Three-Star Green Building).

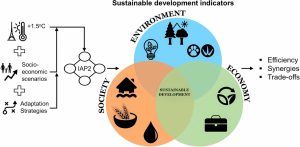

- Environmental Goals and Sustainability (Social Responsibility and Future Trends)
Carbon Footprint:
Use low-GWP refrigerants (e.g., R454B, R1233zd(E), R32, ammonia R717, CO₂ R744), high-efficiency equipment, and renewables to reduce direct/indirect emissions.
Green Building Certification:
HVAC systems are critical for achieving points in “Energy & Environment” and “Indoor Environmental Quality” categories of LEED, BREEAM, WELL, and China Three-Star.
Water Resource Management:
Cooling tower water conservation (reclaimed/rainwater use), evaporative cooling technologies.
- Budget and Life Cycle Cost (LCC) (Practical Constraints and Long-Term Value)
Upfront Costs: Equipment, installation, controls, and equipment room construction.
Operational Costs: Dominated by energy, water treatment, and labor.
Maintenance Costs: Routine servicing, parts replacement, and system cleaning.
LCC Analysis:
Use Net Present Value (NPV) or Internal Rate of Return (IRR) to evaluate options. Prioritize lowest LCC over lowest upfront cost. High-efficiency systems may achieve payback in 3–7 years.
- Operation Management and Maintenance (Long-Term Performance Assurance)
System Complexity:
Match system sophistication to owner/operator technical capacity. Overly complex systems underperform if poorly maintained.
Smart Controls:
Advanced Building Automation Systems (BAS/BMS) optimize operation, enable diagnostics, and support preventive maintenance.
Maintainability:
Equipment room space, access, spare parts availability, and modular design impact maintenance efficiency.
Analysis of Mainstream Large-Scale HVAC Systems and Case Studies

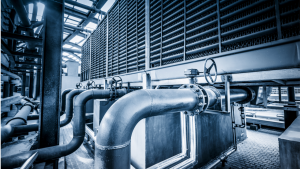

- Centralized Chiller + Boiler + Air Handling System (Classic Solution)
Components: Electric centrifugal/screw chillers, gas/electric boilers, cooling towers, pumps, AHUs, FCUs/VAV terminals.
Pros: Mature, reliable, widely applicable, efficient (centrifugal COP: 6.0–7.0+).
Cons: High pump energy (15–25% of system energy), significant fan energy, reduced part-load efficiency, large equipment rooms.
Case: Super-Tall Office Complex (528m)
Solution: Zoned centralized system with high-efficiency VFD chillers (partial heat recovery), ice storage (45,000 RTh), and VAV.
Outcome: Met strict environmental needs, reduced energy use, achieved LEED Gold.

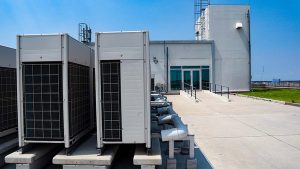

- Variable Refrigerant Flow (VRF/VRV) System
Components: Outdoor inverter compressor units, refrigerant piping, indoor units, centralized controller.
Pros: High part-load efficiency (IPLV), design flexibility, zoning control, heat recovery capability.
Cons: Higher upfront cost, large refrigerant charge, complex piping, limited fresh air handling.
Case: Large Tech Company Headquarters
Solution: Heat-recovery VRF + centralized DOAS.
Outcome: Enabled zoning flexibility, reduced energy via heat recovery, no central plant space.
- Water-Loop Heat Pump (WLHP) System
Components: Decentralized water-source heat pumps, water loop, auxiliary sources (cooling tower/boiler/geothermal).
Pros: Excellent part-load efficiency, zone autonomy, tenant metering, renewable integration.
Cons: Efficiency depends on simultaneous heating/cooling balance, pump energy, potential noise.
Case: U.S. Skyscraper Complex (Office Floors)
Solution: WLHP leveraging core cooling and perimeter heating.
Outcome: Reduced auxiliary energy, enabled tenant control and billing.
- District Heating and Cooling (DHC)
Model: Centralized plant supplies chilled/hot water via underground pipes to buildings in a zone (CBD, campus, etc.).
Pros: Economies of scale (large chiller COP >6), space-saving, reduced environmental impact, professional operation.
Cons: High infrastructure investment, cost assessment for users, requires concentrated demand.
Case: Guangzhou Zhujiang New Town DHC
Scale: >4 million m², Asia’s largest DHC.
Technology: Centrifugal chillers + ice storage + river water cooling.
Outcome: 20–30% lower energy, reduced grid peak demand, enhanced urban environment.
- Temperature and Humidity Independent Control (THIC) System
Core Principle: Decouples sensible (temperature) and latent (humidity) load handling.
Pros: Higher efficiency (high-temperature cooling sources), enhanced comfort (radiant panels, dedicated outdoor air), improved IAQ.
Cons: Higher complexity and cost, risk of condensation.
Applications: Premium offices, hospitals, museums, data centers.
Key Decision-Making Process: From Theory to Practice
- Deep Needs Analysis: Assemble team (owner, architect, MEP, sustainability consultant).
- Precision Load Modeling: Conduct detailed dynamic simulation.
- Conceptualization & Screening: Develop 2–4 technically feasible options.
- Technical-Economic Analysis: Compare performance, LCC, and risks.
- Holistic Decision & Optimization: Weigh technical, economic, and sustainability factors.
- Detailed Design & Implementation: Ensure constructability, quality control, and commissioning.
Conclusion: The Art and Science of System Selection
Selecting an HVAC system for large buildings is a complex systems engineering task with no universal “best” solution. Success lies in understanding project specifics, quantifying needs, evaluating trade-offs, and embracing innovation.
Supertall Landmarks (e.g., China): Zoned central systems (chillers + VAV + ice storage) with advanced BMS.
Flexible Corporate HQs: Heat-recovery VRF for part-load efficiency and adaptability.
Multi-Tenant Offices (e.g., U.S. Financial Centers): WLHP for load balancing and tenant billing.
High-Density Urban Cores (e.g., NYC): DHC for district-wide efficiency and sustainability.
Premium Projects (e.g., Shenzhen): THIC for breakthrough efficiency and comfort.
The optimal choice balances data-driven analysis, LCC, environmental responsibility, and unique project needs. As “dual-carbon” goals and technologies evolve (e.g., AI controls, low-GWP refrigerants), future HVAC systems will prioritize smart, low-carbon integration, advancing building sustainability.
