As the HVAC industry moves toward more eco-friendly refrigerants, R-454B is becoming a popular alternative to R-410A. Here’s a straightforward comparison to help you understand the differences and make an informed decision.
For years, R-410A has been the go-to choice, but with growing environmental concerns, R-454B is stepping into the spotlight. Beginning in late 2024, R454B will replace R410A in all newly manufactured HVAC systems to meet these environmental goals. Homeowners should be aware that prices for new HVAC systems are expected to rise due to this change.
Let’s break down their differences in plain language, so you can decide what’s best for your needs.

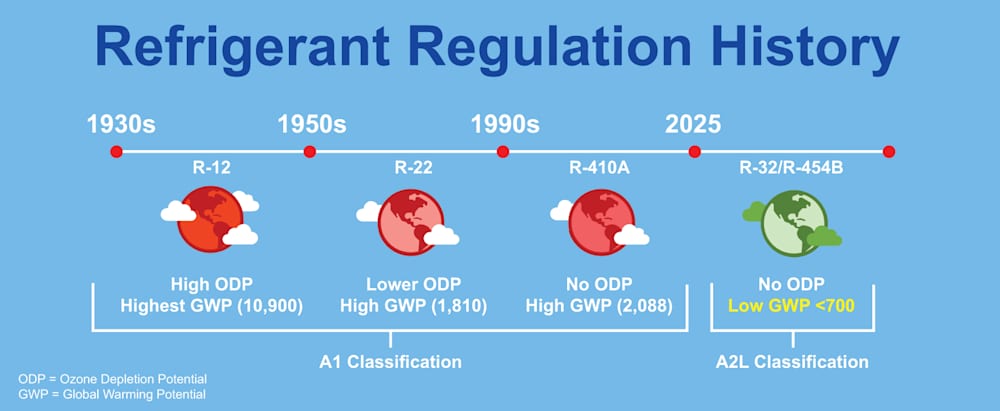

Why the Shifts from R-410 into R454B ?
image source: carrier.com
Environmental Regulations: The EPA is reducing production of HFC refrigerants (e.g., R-410A) with high Global Warming Potential (GWP > 700) to combat climate change.
Phase-Down Timeline:
- 2024: 40% reduction in HFC production.
- 2029: 70% reduction.
- 2025 Deadline: R-410A equipment cannot be manufactured/imported after December 31, 2024, and installed after December 31, 2025 14.
2. Impacts on the Industry
- Cost Increases: R-410A prices will rise as supply dwindles.
- New Tools & Training: Technicians need A2L-compatible tools (e.g., non-sparking manifolds) and updated training for safe handling.
- Equipment Changes: Manufacturers are shifting to A2L-compatible systems, requiring retrofitting or replacements.
Pressure: Stronger Isn’t Always Better
- R-410A: Operates at higher pressures, requiring sturdier equipment like thicker pipes and heavy-duty parts, which can increase costs.
- R-454B: While still high-pressure, its pressure changes more gradually. This might mean fewer adjustments to your system, but designers still need to ensure components like compressors can handle its unique flow.
- Takeaway: R-454B could save on upfront costs for smaller systems, but both need robust setups.

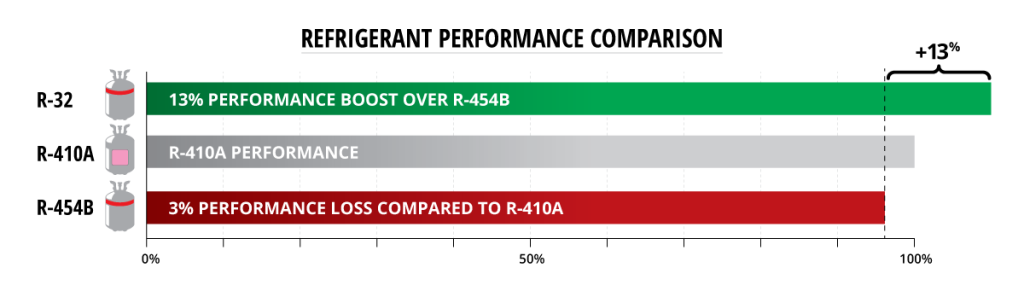

- Efficiency: Cooling Power vs. Energy Bills
Efficiency: Cooling Power vs. Energy Bills
| Aspect | R – 454B | R – 410A |
| Performance | Similarly efficient to R – 410A, might be more efficient in some cases, getting a bit more cooling per unit of energy consumed. | Similarly efficient to R – 454B, but may be outperformed by R – 454B in certain situations. |
| Real – World Notes | Efficiency can be affected by extreme heat or humidity. Proper system design is crucial to ensure optimal performance. | Efficiency can be affected by extreme heat or humidity. Proper system design is crucial to ensure optimal performance. |
| Capacity Catch | Might need larger parts (such as bigger condensers) to match R – 410A’s output, which could result in bulkier equipment or higher initial costs, but lower energy bills over time. | Output can be matched by R – 454B with the latter potentially requiring larger components. |
Aspect R-454B And R-410A
- Performance Similarly efficient to R-410A, might be more efficient in some cases, getting a bit more cooling per unit of energy consumed. Similarly efficient to R-454B, but may be outperformed by R-454B in certain situations.
- Real-World Notes Efficiency can be affected by extreme heat or humidity. Proper system design is crucial to ensure optimal performance. Efficiency can be affected by extreme heat or humidity. Proper system design is crucial to ensure optimal performance.
- Capacity Catch Might need larger parts (such as bigger condensers) to match R-410A’s output, which could result in bulkier equipment or higher initial costs, but lower energy bills over time. Output can be matched by R-454B with the latter potentially requiring larger components.

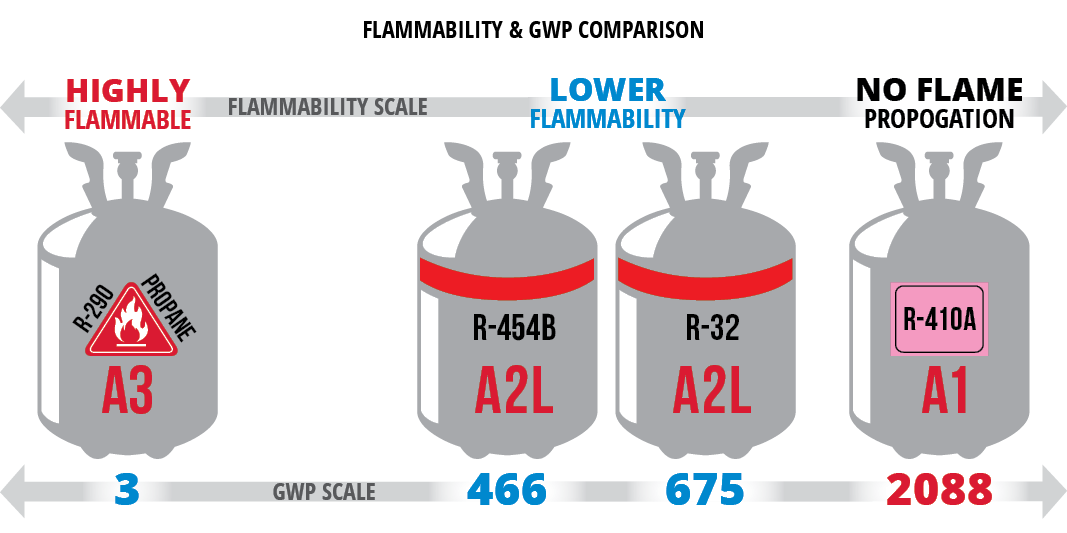

Safety: Flammability Matters
- R-410A: Totally non-flammable (like water)—ideal for hospitals, schools, or crowded spaces.
- R-454B: Mildly flammable (like cooking oil). It’s low-risk but needs precautions: no open flames nearby, good ventilation, and spark-proof electrical setups.
- When to Choose: Stick with R-410A in high-safety areas. For most homes, R-454B’s risks are manageable with proper installation.
Environmental Impact: The Planet-Friendly Pick
- Global Warming Potential (GWP):
R-410A: A heavy hitter (GWP 1,890–2,100), like driving a gas-guzzling SUV.
R-454B: A greener choice (GWP 466), closer to a hybrid car.
- Regulations: Laws worldwide are phasing out high-GWP refrigerants. Switching to R-454B future-proofs your system and avoids penalties.
Cost & Upgrades: What to Expect
- Retrofitting:
- Switching to R-454B isn’t a full overhaul, but you might need new valves or seals. Think of it as a tune-up, not a new engine.
- Long-Term Savings: Lower energy bills and avoiding regulatory hassles could offset upfront costs.
Overview of R-454B
R-454B is a hydrofluoroolefin (HFO)/hydrofluorocarbon (HFC) blend designed to replace R-410A. With a global warming potential (GWP) of 466 (vs. R-410A’s 1,890–2,100), it complies with stricter environmental regulations like the EPA’s AIM Act. Marketed as Opteon™ XL41 by Chemours, it offers near drop-in compatibility with existing R-410A systems, minimizing retrofit costs.
Key Differences: R-454B vs. R-410A
| Property | R-454B | R-410A |
| GWP | 466 | 1,890–2,100 |
| Blend Type | Zeotropic (R-32 + R-1234yf) | Near-azeotropic (R-32 + R-125) |
| Flammability | A2L (mildly flammable) | A1 (non-flammable) |
| Efficiency (COP) | Similar or slightly better | Standard |
| Boiling Point | -58.9°F (-50.5°C) | -55.3°F (-48.5°C) |
- Property R-454B R-410A
- GWP 466 1,890–2,100
- Blend Type Zeotropic (R-32 + R-1234yf) Near-azeotropic (R-32 + R-125)
- Flammability A2L (mildly flammable) A1 (non-flammable)
- Efficiency (COP) Similar or slightly better Standard
- Boiling Point -58.9°F (-50.5°C) -55.3°F (-48.5°C)
Pros and Cons of R-454B
Aspect | Details |
| Advantages of R – 454B | Environmental Compliance: Complies with EPA phase – down mandates as its GWP is less than 700. Performance: Has a coefficient of performance (COP) comparable to R – 410A. Retrofit – Friendly: Can be used in most R – 410A systems with only minimal adjustments. Non – Ozone Depleting: Its ozone depletion potential (ODP) is 0. |
| Disadvantages of R – 454B | Mild Flammability: Classified as A2L, so updated safety protocols are needed. Zeotropic Blend: The temperature glide (about 1.5°F) makes system modeling more complex. Capacity Limitations: For equivalent output, it may need coils that are 10 – 20% larger. |
Transitioning to R-454B
- Compatibility: Most R-410A systems can retrofit to R-454B with compatible lubricants and minimal hardware changes.
- Safety: A2L flammability necessitates professional installation and leak checks.
- Cost: Initial refrigerant cost is higher, but long-term energy savings may offset this.
Considerations for OEMs:
- System designs may need adjustments (e.g., enhanced heat exchangers) to match R-410A capacity.
- Performance testing is critical to ensure efficiency and safety standards.
Global Trends in Refrigerant Adoption: The Shift Toward R-454B
The HVAC industry worldwide is transitioning from high Global Warming Potential (GWP) refrigerants like R-410A to more environmentally friendly alternatives such as R-454B. This shift is driven by stringent environmental regulations and a global commitment to reducing greenhouse gas emissions.
Regulatory Developments
- United States:
In July 2023, the U.S. Environmental Protection Agency (EPA) finalized a rule to reduce the production and consumption of hydrofluorocarbons (HFCs) by 85% by 2036, in line with the American Innovation and Manufacturing Act of 2020. This regulation mandates the phase-out of high-GWP refrigerants like R-410A, promoting the adoption of alternatives such as R-454B.
- European Union:
The EU has implemented the F-gas Regulation, aiming to reduce emissions of fluorinated greenhouse gases. This regulation encourages the transition to low-GWP refrigerants, aligning with global efforts to mitigate climate change.
Adoption of R-454B
R-454B, a blend of R-32 and R-1234yf, offers a GWP of 466, significantly lower than R-410A’s GWP of 2088. This makes it a favorable choice for new HVAC systems. Major manufacturers are integrating R-454B into their product lines, with some planning to transition by 2024.
Challenges and Considerations
Despite its advantages, the adoption of R-454B faces challenges:
- Safety Standards:
R-454B is classified as an A2L refrigerant, indicating mild flammability. This classification necessitates updates to safety standards and protocols to ensure safe handling and use.
- Training and Education:
HVAC professionals require specialized training to handle R-454B safely and effectively. This includes understanding its properties, system compatibility, and maintenance requirements.
- System Compatibility:
While R-454B can often be retrofitted into existing R-410A systems, this process may require modifications to components like compressors and heat exchangers to accommodate the refrigerant’s unique properties.
FAQs
Q: Is R-454B safe for home use?
A: Yes, but its A2L classification requires trained HVAC technicians for handling.
Q: Will switching to R-454B save money?**
A: Upfront costs may rise, but energy efficiency improvements could reduce long-term expenses.
Q: Are there alternatives to R-454B?
A: Yes, including R-32 (used by Daikin) and other low-GWP blends like R-466A.
Conclusion
The global shift toward low-GWP refrigerants like R-454B reflects a collective commitment to environmental sustainability and climate change mitigation. While challenges exist, the benefits of reduced GWP, improved energy efficiency, and regulatory compliance make R-454B a compelling choice for the future of HVAC systems worldwide.
