Air Handling Units (AHU) play a vital role in the ventilation and air conditioning systems of modern buildings. They are responsible for circulating, cleaning, and conditioning the air inside buildings to ensure a comfortable and healthy indoor environment. Below is a detailed description of AHU, including their functions, components, types, and applications in buildings.
What is an Air Handling Unit (AHU)
An air handling unit (AHU) is a factory-built device that typically consists of a fan, heating and cooling elements, filters, and other necessary equipment. Its primary function is to heat, cool, humidify, or dehumidify air and deliver the treated air to the interior of a building.AHU can be categorized into two basic types: Fresh Air Handling Units (FHU) and Recirculating Air Handling Units (RAWU).
Fresh Air Handling Unit: This type of AHU draws in fresh air from the outside and sends it into the room after filtration and conditioning.
Recirculating Air Handling Units (AHU): These AHU draw in air from indoor, handle it, and then return it to the indoor.

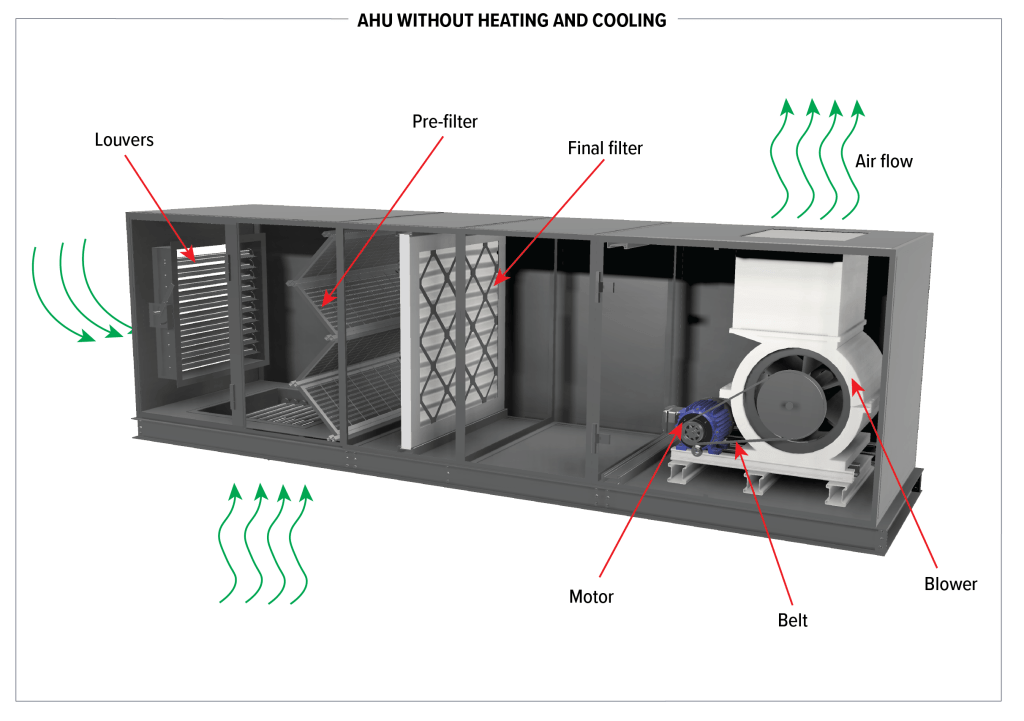

Main components of AHU
1. Inlet valve: Used to control the entry of outside air.
2. Filter: Used to remove large particles such as dust and pollen from the air, usually including pre-filters and bag filters.
3. Cooling Coil: Used to lower the air temperature, usually using cold water or refrigerant.
4. Heating Coils: Used to raise the temperature of the air and are commonly found in colder regions.
5. Fans: Responsible for moving the treated air into the various spaces of the building.
Performance Indicators for AHU
There are several key performance indicators to consider when choosing the right AHU:
1. Airflow and capacity: The airflow of an AHU must match the needs of the building, usually based on the floor area, the number of occupants, and the required air change rate.
2. Energy efficiency: AHU with high energy efficiency ratings can significantly reduce energy costs while reducing carbon footprint.
3. Noise level: In noise-sensitive environments such as hospitals, it is vital to select AHU with low noise levels.

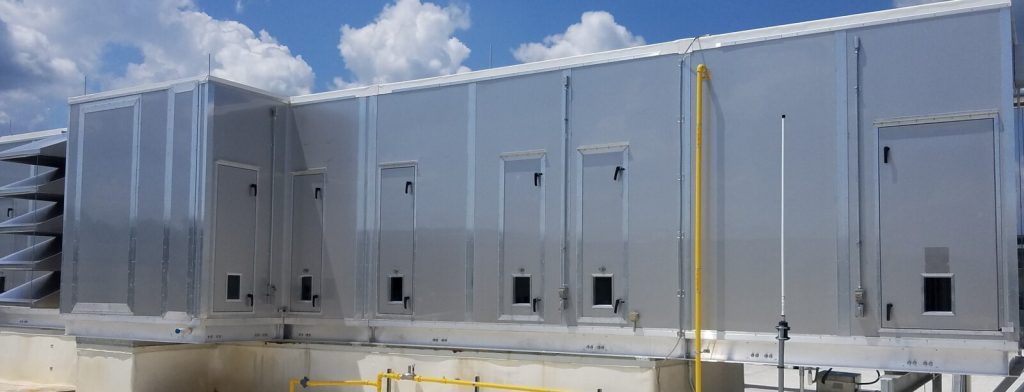

Application of AHU in buildings
AHU are widely used in commercial buildings, hospitals, shopping centers, and other locations. In these environments, AHU not only provide comfortable indoor temperatures but also effectively improve indoor air quality. For example, in hospitals, AHU are able to filter out bacteria and viruses, providing a clean and safe air environment.
Future Trends

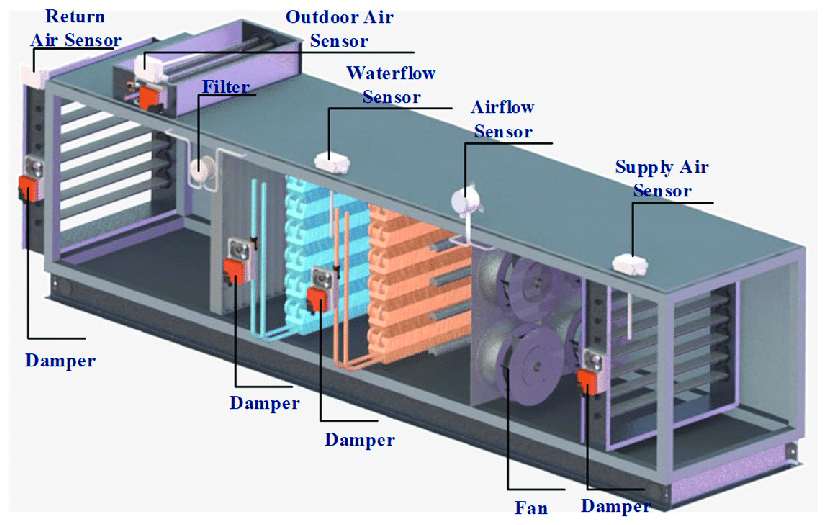

With the development of technology, modern AHU are moving towards intelligence and efficiency. For example, many new AHU have integrated sensors that monitor temperature, humidity, and air quality in real-time to automatically adjust operating modes for optimal energy efficiency. In addition, low air leakage designs are increasingly being emphasized to improve overall system efficiency and reduce energy waste.
In conclusion, air handling units (AHU) play an important role in enhancing building comfort and indoor air quality. As technology evolves, so do their design and functionality, providing users with more efficient and environmentally friendly solutions.
